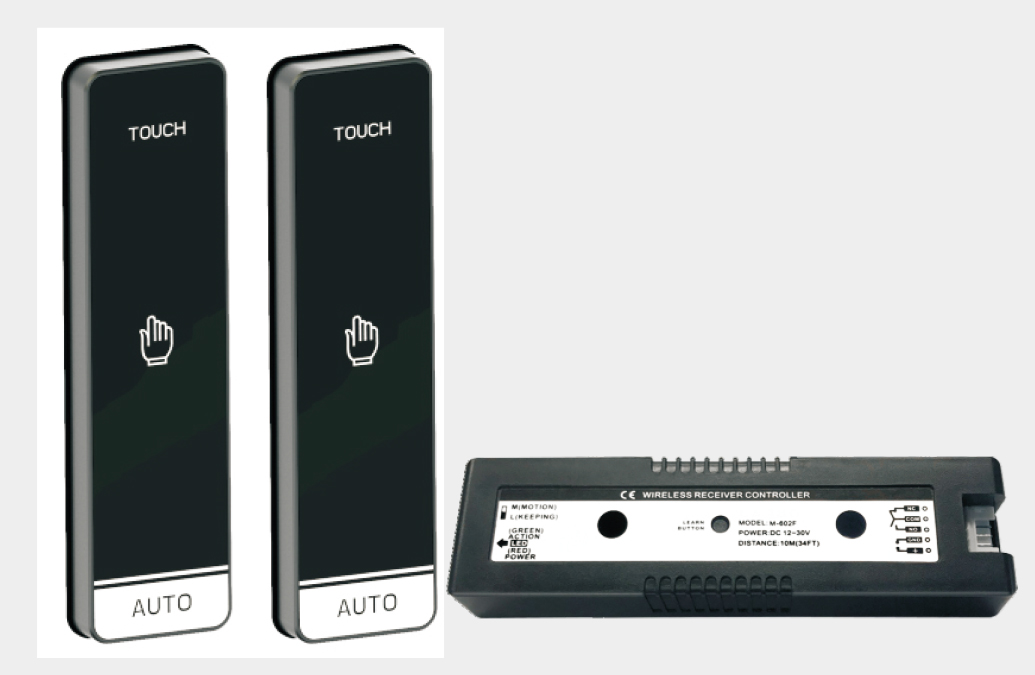

MODLE 602 High Sensitive Touch Automatic Door Switch With Wireless And Wired Design

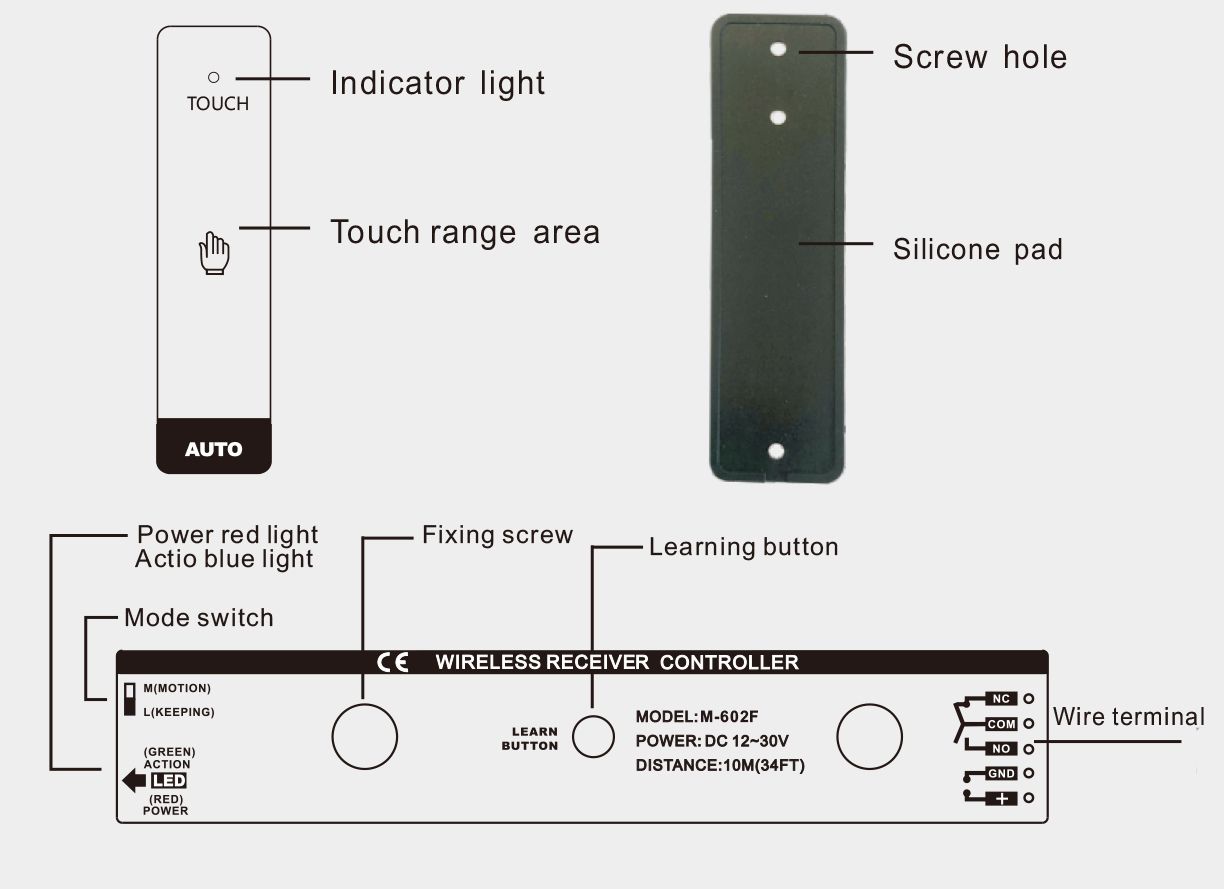

| Product Over-view |
| Characteristic |
1.Adopt low power and high sensitivity of 2.4G wireless touch hand switch. Widely used in various automatic door and door control devices, 2.4G radio waves, strong anti-interference ability. Low power consumption, wide range of usage, and long life for usage.
2.The receiver of this product has no design for a wide voltage input, but the input for 12-36V AD/DC power supply is valid. When the signal is received, the red light will also turn green, it confirmed the signal is valid. Anti-shedding screw fixing design, wireless and wired design for your option.

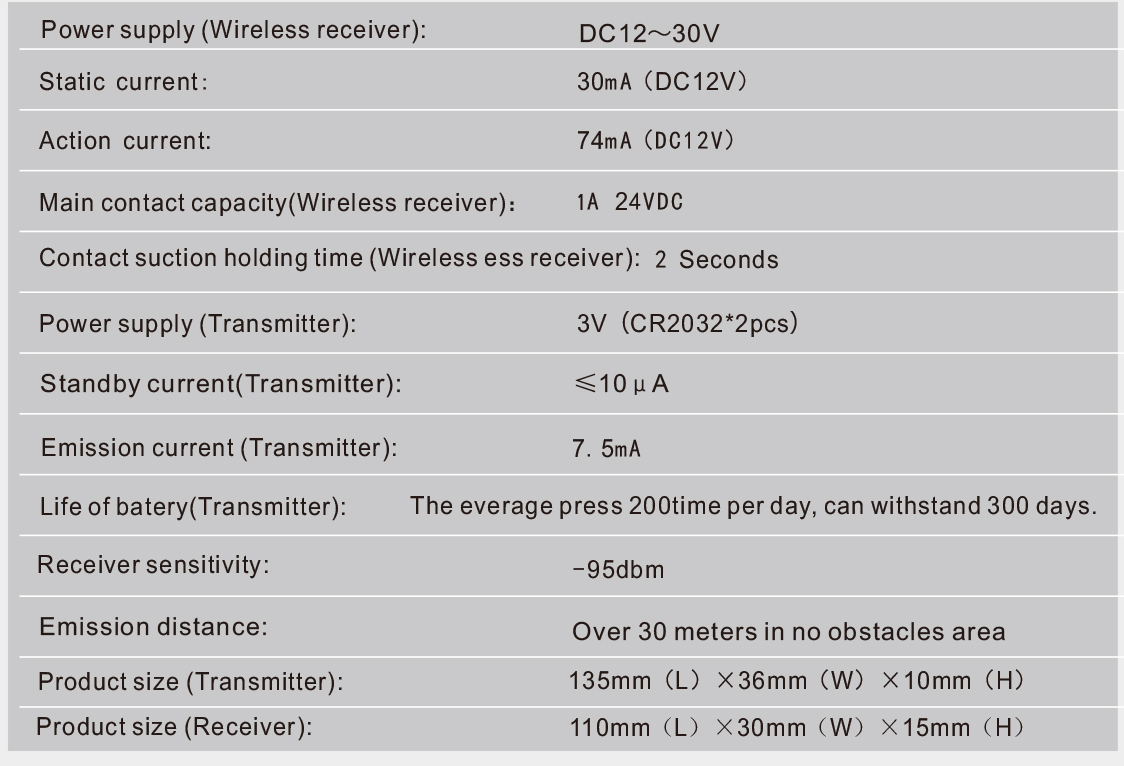

| Technical Parameter |

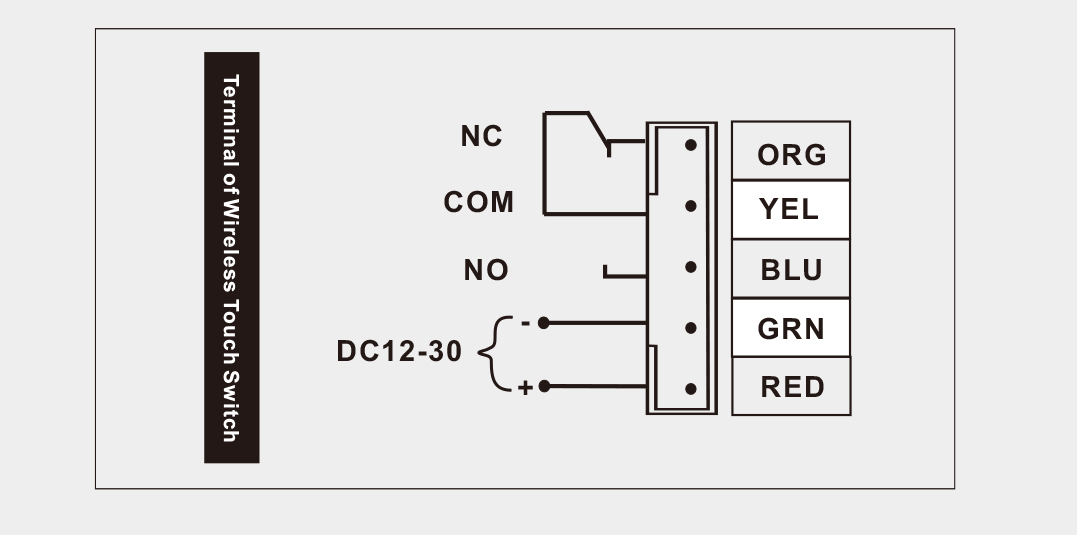

| Definition of Input and Output |

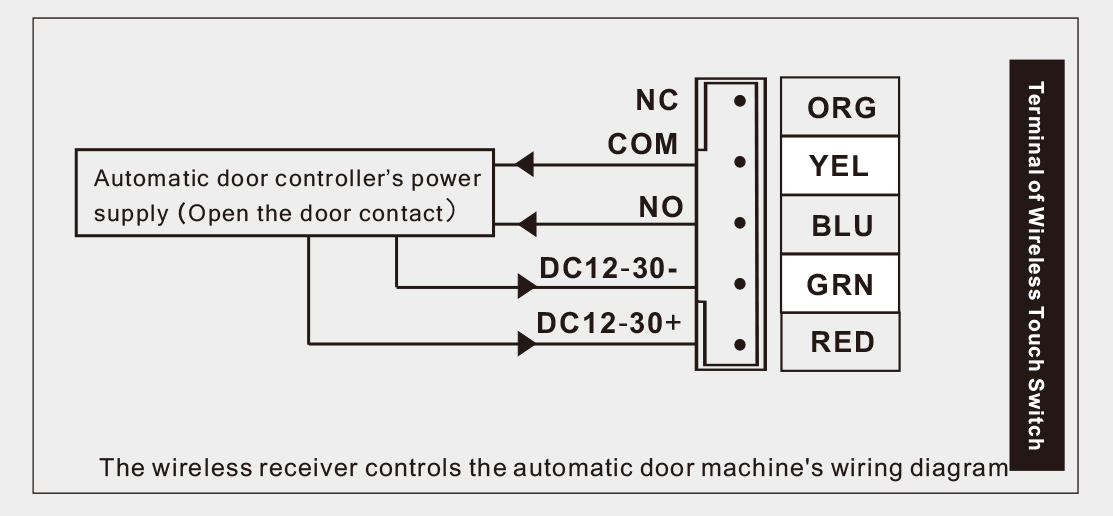

| Wiring Diagram for Wireless Receiver |

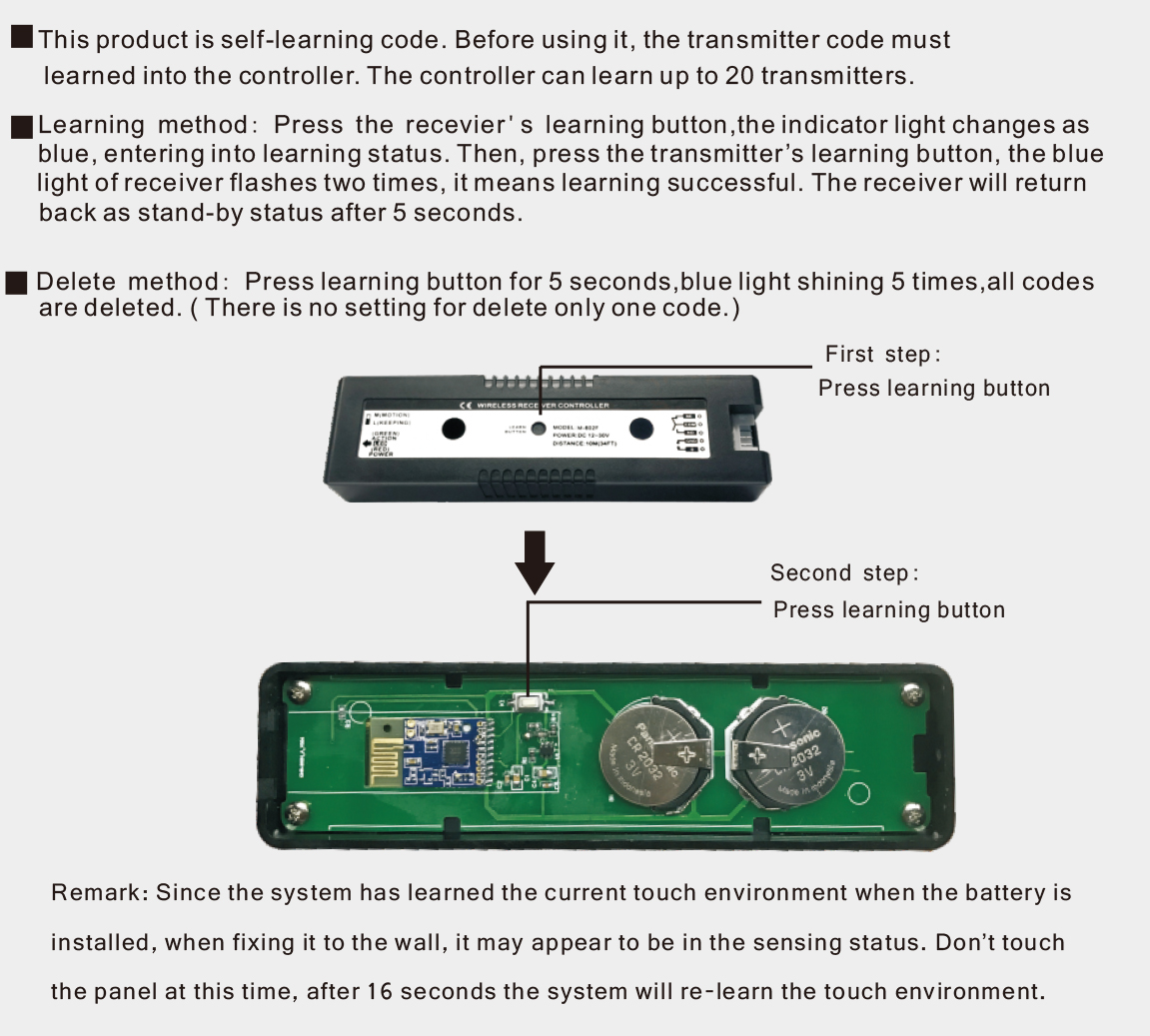

| Matching Methods |
